SHOWA SOKKI

日本SHOWA SOKKI



Types and Specifications of Strain Gages



Kinds Uniaxial Strain Gages Biaixal Strain Gages Triaxial Strain Gages Stress Concentration Measurements
Pattern Code
 N11... N22... N32... R11,N51,R51...
Lead wire pre-attached
 N11...VS... N22...VS... N32...VS... R11,N51,R51...VS...
Basic pattern
Kinds Uniaxial 45° Diaphragm Type Crack Detection Pipe Gage
Purpose
 Shearing stress and torque measurement Pressure sensor Crack propagation detection and analysis Bolt spindle power measurement -Click-
Pattern Code
 Z11,Z23... Q44... X11,C11... P11...
Basic pattern



Tension & Compression Load Cells Selection Table

Type Features and Applications Capacity Range Nonlinearity(%RO) Rated Output(mV/V) Compensated Temp.Range (℃)
SH Shear beam type,Small,General Purpose
1kN,..10MN
0.15
0.75~1.5±1%
－10 to 60
SHE Shear beam type,High output,General Purpose
5kN,..1MN
0.05 to 0.15
2.0±1%
－10 to 60
SHE-U Shear beam type,Water Proof※1
5kN,..200kN
0.05
2.0±1%
－10 to 60
SHE-LH Shear beam type,High & Low Temperature※1
5kN,..200kN
0.2
2.0±20%
－40 to 150
SHU Shear beam type,High Accuracy
10kN,..1MN
0.03
2.0±1%
－10 to 60
RCT Pipe type,General Purpose※2
10kN,..1MN
0.2
1.5±1%
－10 to 60
RCB Coaxial beam type,General Purpose※3
50N,..5kN
0.15
1.5±1%
－10 to 60
RCT-E Coaxial beam type,High Accuracy,General Purpose
10N,..5kN
0.05
1.5±1%
－10 to 45
DBU Coaxial beam type,High Accuracy
50N,..5kN
0.02
2.0±1%
－10 to 60
BUX Coaxial beam type,Low-profile & High Accuracy※1
100N,..5kN
0.012
2.0±0.1%
－10 to 50
CUX Coaxial beam type,High Accuracy,Atmospheric pressure balance※1
200N,..5kN
0.02
1.5±0.3%
－10 to 60

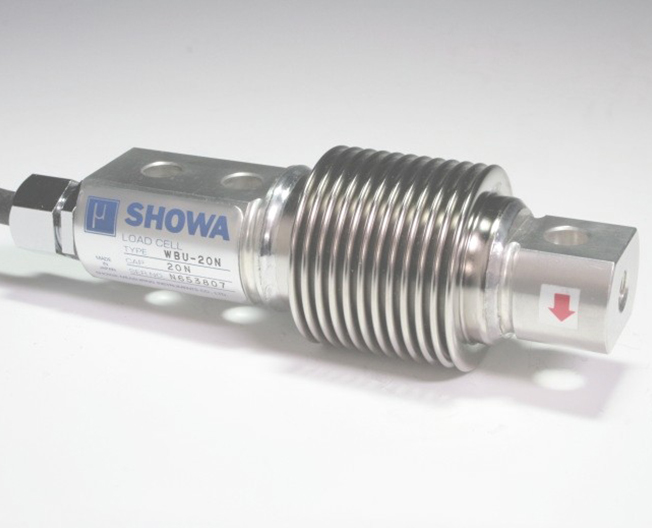

WBU Beam type,High Accuracy,Metal bellows,General Purpose
10N,..2kN
0.015
2.0±1%
－10 to 60
WBE Beam type,High Accuracy,High output,General Purpose
50N,..10kN
0.05
3.0±1%
－10 to 60
WBS Beam type,High Accuracy,Small size,General Purpose
50N,..2kN
0.05
3.0±1%
－10 to 60
WBJ Beam type,Ultralow-Capacity,High Accuracy,General Purpose
0.2N,..2N
0.035
1.0±10%
－10 to 45
WBF-J Beam type,Ultralow-Capacity,High Accuracy,"G" Non-Sensitivity
0.3N,..1N
0.035
1.0±10%
－10 to 45
DBJ Coaxial beam type,Ultralow-Capacity,High Accuracy,General Purpose
1N,..20N
0.025
2.0±5%
－10 to 45
  • * Items with Marks (※1) are produced only on order placed.
  • * Cap.500kN & 1MN with Marks (※2) will have Compression calibration data only.
  • * It's Compression calibration with Marks (※3) only. / Tension is optional calibration.

Compression Load Cells Selection Table

Type Features and Applications Capacity Range Nonlinearity(%RO) Rated Output(mV/V) Compensated Temp.Range (℃)
RCU Coaxial beam type,High Accuracy,General Purpose
10kN,..200KN
0.03
3.0±1%
－10 to 60
RCE Column type,High output,General Purpose※1
5kN,..1MN
0.2
2.0±1%
－10 to 60
RC Column type,Spherical mounting plate,General Purpose
10kN,..5MN
0.2
1.5±1%
－10 to 60

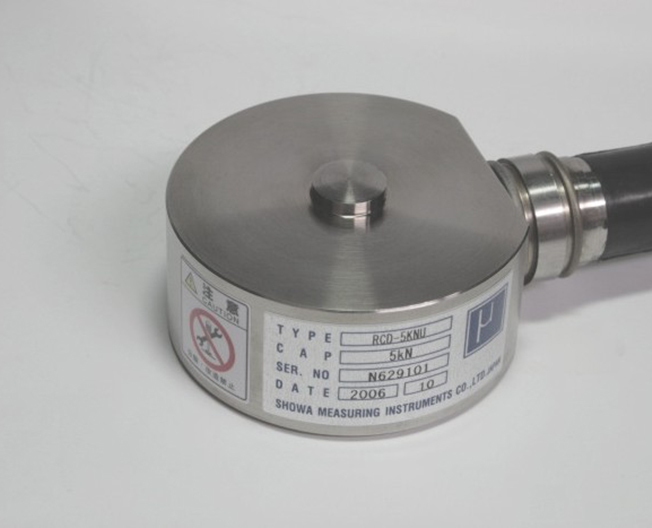

RCD Coaxial beam type,General Purpose
500N,..200kN
0.15
2.0±1%
－10 to 60
RCD-U Coaxial beam type,Water Proof,General Purpose
500N,..200kN
0.15
2.0±1%
－10 to 60
LSM Beam type※1
5kN,..20kN
0.05
2.0±1%
－10 to 60
LSS Coaxial beam type
5kN,..20kN
0.05
2.0±1%
－10 to 60
MRD Ultra-small type,General Purpose
10N,..10kN
1
1.0±20%
0 to 60
MRU Ultra-small type,General Purpose
200N,..1kN
2
1.0±20%
0 to 60
MR-251 Ultra-small type,General Purpose
20N,50N
0.5
1.0±20%
0 to 60
MR Small type,General Purpose
5N,..100N
1
1.0±20%
0 to 60
HCS Small & Washer type,measurement of axial power of bolts,General Purpose※1
25kN,..100kN
35
1.5 to 1.8±20%
－10 to 60
PHC Center Hole type,General Purpose※1
10kN,..1MN
.02
1.5±1%
－10 to 60
HC Center Hole type,General Purpose※1
10kN,..1MN
.02
1.5±1%
－10 to 60
HCW Washer type,Rolling mill & Forging press machine※1
1MN,..5MN
1
1.0±1%
－10 to 60
HCWB Low cost,Washer type,General Purpose※1
30kN,..500kN
1
1.0±1%
－10 to 60
  • * Items with Marks (※1) are produced only on order placed.



Type Features and Applications Capacity Range Nonlinearity(%RO) Rated Output(mV/V) Compensated Temp.Range (℃)
RTU Coaxial beam type,High Accuracy,General Purpose
10kN,..200MN
0.03
3.0±1%
－10 to 60
RTE Coaxial beam type,High Accuracy,General Purpose※1
2kN,..200KN
0.05
3.0±1%
－10 to 60
RTD Coaxial beam type,General Purpose
500N,..20kN
0.15
2.0±1%
－10 to 60
RTD-U Coaxial beam type,Water Proof,General Purpose
500N,..20kN
0.15
2.0±1%
－10 to 60
RTB Coaxial beam type,Attached Rod-end,General Purpose
50N,..5KN
0.2
1.5±1%
－10 to 60
MRDT Ultra-small type,General Purpose
50N,..2kN
1
1.0±20%
0 to 60
DB Coaxial beam type,High Accuracy,General Purpose
200N,..20kN
0.02
3.0±1%
－10 to 60
DBS Coaxial beam type,High Accuracy,Low Cost,General Purpose
200N,..50kN
0.05
3.0±1%
－10 to 60




Torque Transducers Selection Table



Type Features and Applications Capacity Range Nonlinearity(%RO) Rated Output(mV/V) Compensated Temp.Range (℃)
TP-L Reaction Torque type,Ultralow-Capacity,Aluminum alloy※1
1,..100 N•cm
0.3
1.0±20 %
－10 to 40
TP-R Reaction Torque type,Low-Capacity,High stiffness,Aluminum alloy※1
50,..1000 N•cm
0.2
1.0±20 %
－10 to 40
TP Reaction Torque type,High stiffness,Flange at both ends,General Purpose
50,..20 kN•m
0.2
1.0±1 %
－10 to 60
TQP Rotary Torque type(with Slip-ring assemblies),General Purpose※1
5,..20 KN•m
0.3
0.5,1.0,1.5±1 %
－10 to 60



  • * Items with Marks (※1) are produced only on order placed.



Pressure Transducers Selection Table

Type Features and Applications Capacity Range Nonlinearity(%RO) Rated Output(mV/V) Compensated Temp.Range (℃)
HVS High Accuracy type
0.5,..50MPa
0.2,0.3
1.0,1.5±1%
－10 to 60
HVU General Purpose type
1,..50MPa
0.3,0.5
1.5,2.0±1%
－10 to 60
HVJS Small & High Temperature type
1,..50MPa
0.5
1.0,1.5±20%
－10 to 150
HVJS-JG Small & High Temperature type,Vibration-proof
1,..10MPa
0.5
1.0,1.5±20%
－10 to 150
HVM Flush-Diaphragm type,General Purpose
1,..50MPa
0.5
1.0,1.5±20%
－10 to 60
HVH-B High pressure range type
50,..200MPa
0.3
0.5±1%
－10 to 60
HVA 4~20mA output(3-wire)※1
5,..50MPa
0.5
4 to 20mA
0 to 60
HVML Small & Low Cost,integrated type※1
1,..50MPa
0.5
1.5±20%
0 to 60
  • * Items with Marks (※1) are produced only on order placed.

Displacement Transducers Selection Table

Type Features and Applications Capacity Range Nonlinearity(%RO) Rated Output(mV/V) Compensated Temp.Range (℃)
TCLA-A Sliding resistance wire type
30,..300mm
0.2
1.5±1%
0 to 50
TCLA-B Sliding resistance wire type,High output
50,100mm
0.2
2.5,5±1%
0 to 50
TCL-FA Dial-gage type
5,..30mm
0.5
1.5±1%
5 to 40
TCL-S Long stroke & Sliding resistance wire type
500,..2000mm
0.3
1.5±1%
0 to 50
TCL-M Small & Cantilever type,Low Cost
5,..50mm
0.5
1.5±1%
0 to 50
TCL-L High response & Inductance type※1
±5,..±100mm
0.3
1.5±10%
0 to 50
TCL-LR Inductance type with spring in※1
2.5,..100mm
0.3
0.75,1.0,1.5±20%
0 to 50
  • * Items with Marks (※1) can be built only on order and exclusive amplifier(Type 5783) is necessary.

Acceleration Transducers Selection Table

Type Features and Applications Capacity Range Nonlinearity(%RO) Rated Output(mV/V) Compensated Temp.Range (℃)
SAL Uniaxial & High output type
±20m/s2,..±200m/s2
1
1.1±30%
－10 to 60
SAH Uniaxial & High response type
±100m/s2,..±10km/s2
1
0.55±30%
－10 to 60
SALT Triaxial & High output type※1
±20m/s2,..±200m/s2
1
1.1±30%
－10 to 60
SAHT Triaxial & High response type※1
±100m/s2,..±10km/s2
1
0.55±30%
－10 to 60
  • * Items with Marks (※1) are produced only on order placed.

Special Transducer Selection Table

Type Features and Applications Capacity Range Nonlinearity(%RO) Rated Output(mV/V) Compensated Temp.Range (℃)
MDF 6-Component force sensor※1
1 kN,..10 kN/Fx,..
0.4
1.2±15 %
0 to 60
MD2 High-accuracy 2 Component Load Cell※1
50 N,..500 N
0.025
1.0±1 %
－10 to 60
SK Shift-knob force sensor※1
100 N,..500 N
0.1
1.0±20 %
－10 to 40
FR Pedal-force sensor※1
100 N,..1 kN
0.2
1.5±20 %
－10 to 40
MMF Torque & Spindle power Transducer※1
0.2 N•m /20 kN,..
0.2
1.0±1 %
－10 to 60
PSD Load Cell with amplifier,Low Cost
2 N,..100 N
0.2
±10 V
0 to 40
DBV Load Cell with amplifier,Low Cost
200 N,..10 kN
0.1
±10 V
0 to 40
Under Construction Steering force and angle
50 N•m /±1440゜
0.3
1.0±20 %
0 to 60
MUF... Unit of weight measurement(A)※1
30 N,120 N,240 N
0.02
2.0±5 %
－10 to 60
Under Construction Unit of weight measurement(DUX)
200 N,..30 kN
0.03
1.0±1 %
－10 to 50
RCT-580 Load Cell for Positioning Stages
20 N,..1 kN
0.05
1.0±1 %
0 to 50





*
*
*
*
*
*
